Fluency Device Buttons

Device Buttons
Using the Device Buttons option allows you to assign specific actions to buttons on your recording device.

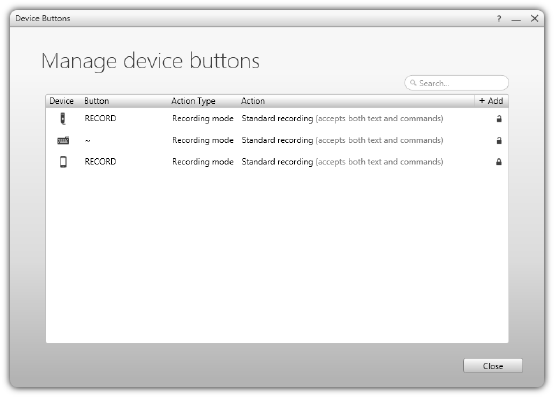

Select Device button from the Control Bar menu, to bring up the Manage Device Buttons screen.

Add New Action
To add a new device button action, click on the Add button in the top right corner.

The Add a Device Button Action window will appear

Click in the Device Button field and then press the device button (i.e. EOL button on your Phillips SpeechMike).
Choose the Action Mode for that button.

-Recording Mode allows you to select Standard Recording, Text Only Recording, or Command Only Recording.
-Command Mode allows you to enter a Command that will be performed when that button is pressed. To enter the Command, start typing the command name, the list will populate with all commands matching. You can select from your complete list of Commands.
-Keystroke Mode allows you to assign a specific keystroke to that button. Ex. CTRL+P.

Edit Action
To edit an existing device button action, click on the action you wish to edit to open the Edit dialog. From this window, you can change the Device Button or the Action assigned to the button. Click Save to exit with the new changes.

Warning:

You may be presented with a warning that the action cannot be modified. This will happen if it is the only button assigned to a required action for that device. For example, you cannot have a device that does not have a Record button assigned.

Locked Action
If an action is inherited and the lock icon is shown, the action can be opened and viewed, but will be disabled for editing, as seen below.

Delete Action
To delete a device button action, click on the X located at the end of the selected action.

Search
The search option is available for you to search through your device button actions. As you type in the search term, Fluency Direct will automatically filter out the actions that don't match.

Olympus RS31 and RS32 Support
Fluency Direct allows you to set up device button actions for your Olympus RS31 and RS32 Footpedal and Hand Controller in the same way that you define the button actions for you microphone.
Once you have installed your foot pedal or hand controller, click the Add New Action button. The Add a device button action window will appear. From here, click in the device button field and then select your footpedal (right, top, left) or hand controller (right, center, left). You'll notice that the device button field will display a hand or foot depending on the controller set.
